Basic Information

Supported CPU

Support Intel Core Ultra Processors (Series 2), LGA1851

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Expansion Slots

PCI

Intel Core Ultra Processors(Series 2)

1 x PCIe 5.0 x16 slot

Intel Z890 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x4 slot

2 x PCIe 4.0 x1 slots

M.2 Socket

Total Supports 4 x M.2 slots

Intel Core Ultra Processors(Series 2)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Memory

Type

DDR5

Slots

4 x DIMM slots

Supported Memory

Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

Dual channel memory architecture

DIMM Fit

Supports Intel Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

Maximum Memory

256GB

Graphics

Graphics

1 x DisplayPort

1 x HDMI port

1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs

1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output

Connector & Ports

HDMI

1 x HDMI

Display Port (s)

1 x DisplayPort

1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs

1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output

USB (s)

Rear USB (Total 8 ports)

1 x Thunderbolt™ 4 port (1 x USB Type-C®)

1 x USB 20Gbps port (1 x USB Type-C®)

3 x USB 10Gbps ports (3 x Type-A)

3 x USB 5Gbps ports (3 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C® power delivery output: max. 5V/3A

LAN Port (s)

1 x Intel 2.5Gb Ethernet

TUF LANGuard

Wireless Communication module

Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4

Supported Storage

Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Ultra Processors(Series 2)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

RAID

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

Internal I/O Ports

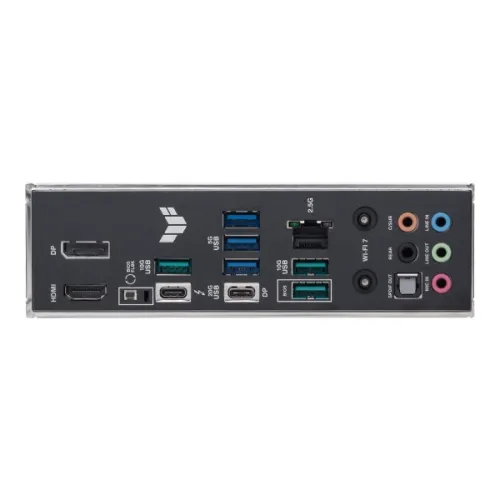

Back Panel I/O Ports

1 x Thunderbolt™ 4 USB Type-C® port

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)

3 x USB 10Gbps ports (3 x Type-A)

3 x USB 5Gbps ports (3 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Storage Related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin Front System Panel header

1 x Thunderbolt™ (USB4®) header

Others

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards

- TUF LANGuard

- Overvoltage protection

- SafeSlot

- Stainless-steel back I/O

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- PCIe Slot Q-Release

- Q-Antenna

- Q-Dashboard

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- CPU Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeDIMM

Aura Sync

- Addressable Gen 2 headers

Bundled Software

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- Power Saving

ASUS DriverHub

ASUS GlideX

TurboV Core

TUF GAMING CPU-Z

DTS Audio Processing

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

NPU Boost

Warranty Information

Manufacturing Warranty

3 Years
