Basic Information

Supported CPU

Support Intel Core Ultra Processors (Series 2)

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

BIOS

256 Mb UEFI AMI BIOS

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

Expansion Slots

PCI

Intel Core Ultra Processors (Series 2)

1 x PCIe 5.0 x16 slot

Intel Z890 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

M.2 Socket

Total Supports 5 x M.2 slots

Intel Core Ultra Processors (Series 2)

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Memory

Type

DDR5

Slots

4 x DIMM slots

Supported Memory

Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

Supports DIMM Flex

Supports DIMM FIT

ASUS Enhanced Memory Profile III (AEMPIII)

Maximum Memory

256GB

Graphics

Graphics

1 x DisplayPort

1 x HDMI port

2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.

Connector & Ports

HDMI

1 x HDMI

Display Port (s)

1 x DisplayPort

2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt™ video outputs

USB (s)

Rear USB (Total 10 ports)

2 x Thunderbolt 4 ports (2 x USB Type-C®)

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)

2 x USB 5Gbps ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A

USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

LAN Port (s)

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless Communication module

Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For Windows 10, only Wi-Fi 6 is supported.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Supported Storage

Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors (Series 2)*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

RAID

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Audio

2 x Audio jacks

Internal I/O Ports

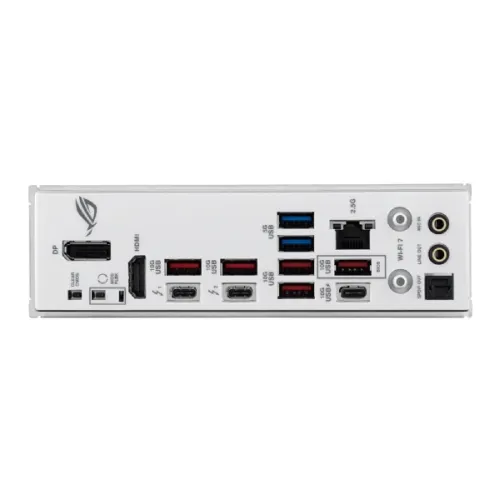

Back Panel I/O Ports

2 x Thunderbolt 4 ports (2 x USB Type-C®)

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)

2 x USB 5Gbps ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

2 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage Related

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Chassis Intrusion header

1 x CPU Over voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

Others

Special Features

Extreme Engine Digi+

- 5K Black metallic capacitors

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- PCIe Slot Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Dashboard

- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-SlotASUS

Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- CPU Socket lever protector

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen 2 headers

Bundled Software

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- GameFirst

- Power Saving

AIDA64 Extreme (60 days free trial)

HWiNFO

ASUS AI Advisor

ASUS DriverHub

ASUS GlideX

USB Wattage Watcher

TurboV Core

Adobe Creative Cloud (30 Days Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

NPU Boost

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

FlexKey

Warranty Information

Manufacturing Warranty

3 Years
