Basic Information

Supported CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD B850

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Form Factor

Mini-ITX Form Factor

6.7 inch x 6.7 inch (17 cm x 17 cm)

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Expansion Slots

PCI

AMD Ryzen 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot with Q-Release Slim

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot with Q-Rlease Slim

M.2 Socket

2 x M.2

Memory

Type

DDR5

Slots

2 x DIMM

Supported Memory

2 x DIMM slots, max. 128GB, DDR5

Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors

ECC and Non-ECC, Un-buffered DIMM

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Maximum Memory

128GB

Graphics

Graphics

1 x HDMI™ port***

1 x USB 10Gbps ports support USB Type-C® display outputs****

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

*** Supports 4K@60Hz as specified in HDMI 2.1.

****Supports max. 4K@60Hz as specified in DisplayPort 1.4a

***** VGA resolution support depends on processors' or graphic cards' resolution.

Connector & Ports

HDMI

1x HDMI 2.1

USB (s)

Rear USB (Total 8 ports)

1 x USB 20Gbps port(s) (1 x USB Type-C®)

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)

2 x USB 2.0 port(s) (2 x Type-A)

Front USB (Total 5 ports)

1 x USB 10Gbps

1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A

LAN Port (s)

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless Communication module

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4***

Supported Storage

Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen™ 7000 & 9000 Series Desktop Processors

M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)

M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)

M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*

* Specifications vary by CPU types.

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Internal I/O Ports

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin Extra Flow Fan header

1 x 4-pin AIO Pump header

1 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)

2 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

2 x Addressable Gen 2 headers

1 x CPU Over voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

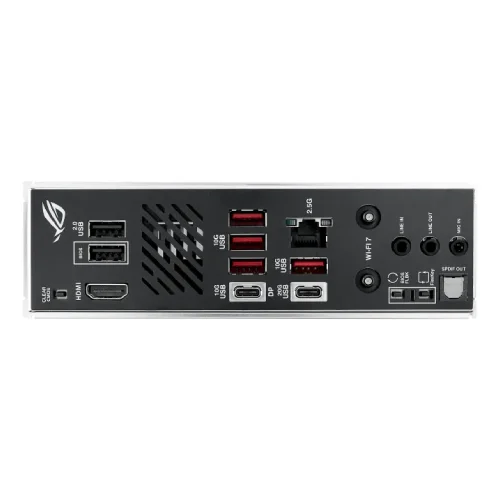

Back Panel I/O Ports

1 x USB 20Gbps port(s)

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

3 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

1 x FlexKey button

Others

Special Features

Extreme Engine Digi+

- 5K Black metallic capacitors

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Slide

- PCIe Slot Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Dashboard

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen 2 headers

Bundled Software

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- Aura Creator

- Aura Sync

- Fan Xpert 4

- GameFirst

- HWiNFO

- Power Saving

ASUS DriverHub

ASUS GlideX

TurboV Core

Adobe Creative Cloud (Free Trial)

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

Warranty Information

Manufacturing Warranty

3 Years Warranty
