Basic Information

Supported CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD X870E

BIOS

256Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

- SupremeFX Shielding Technology

- ESS® ES9219 QUAD DAC

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Expansion Slots

PCI

AMD Ryzen 9000 & 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)

** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.

*** When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.

**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.

AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*

2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)

AMD Ryzen 8500 & 8300 Series Desktop Processors*

2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)

M.2 Socket

Supports 5 x M.2 slots

Memory

Type

DDR5

Slots

4 x DIMM

Supported Memory

Supports up to

8200+MT/s(OC) with Ryzen™ 9000 Series Processors,

8600+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

NitroPath DRAM Technology

ASUS Enhanced Memory Profile (AEMP)

Maximum Memory

256GB

Graphics

Graphics

1 x HDMI port*

2 x USB4 (40Gbps) ports support USB Type-C

Connector & Ports

HDMI

1x HDMI

USB (s)

Rear USB (Total 10 ports)

2 x USB4® (40Gbps) ports (2 x USB Type-C®)

8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)

Front USB (Total 10 ports)

1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)*

1 x USB 20Gbps connector (supports USB Type-C)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A

*USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

LAN Port (s)

1 x Intel 2.5Gb Ethernet

1 x Realtek 5Gb Ethernet

Wireless Communication module

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.

Bluetooth v5.4***

Supported Storage

Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)

M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)

AMD X870E Chipset

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

SlimSAS slot supports PCIe 4.0 x4 mode.

4 x SATA 6Gb/s ports

** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.

***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.

AMD RAIDXpert2 Technology

Ryzen 9000 Series Processors: RAID 0/1/5/10

Ryzen 8000 Series Processors: RAID 0/1

Ryzen 7000 Series Processors: RAID 0/1/10

RAID

Ryzen 9000 Series Processors: RAID 0/1/5/10

Ryzen 8000 Series Processors: RAID 0/1

Ryzen 7000 Series Processors: RAID 0/1/10

Audio

2 x Gold-plated audio jacks

Internal I/O Ports

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

1 x 8-pin PCIe Power connector

Storage Related

5 x M.2 slots (Key M)

1 x SlimSAS connector

4 x SATA 6Gb/s ports

USB

2 x USB 20Gbps connectors (support USB Type-C® )

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen2 headers

1 x Alteration PCIe mode switch

1 x FlexKey button

1 x Front Panel Audio header (F_AUDIO)

1 x ReTry button

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

1 x LN2 Mode jumper

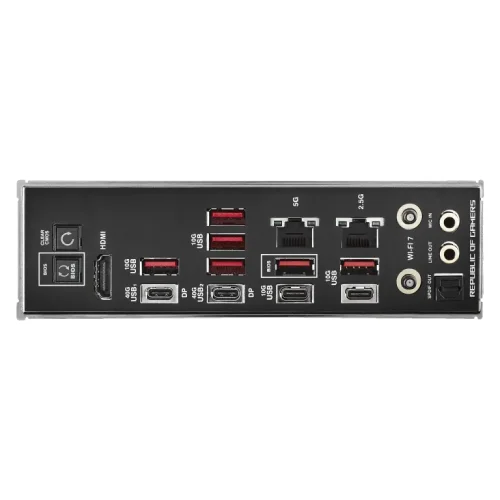

Back Panel I/O Ports

2 x USB4® (40Gbps) ports (2 x USB Type-C®)

8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Others

Special Features

Extreme OC Kit

- FlexKey button

- LN2 Mode

- ReTry button

- Start button

Extreme Engine Digi+

- 10K Black metallic capacitors

- MicroFine alloy choke

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Code

- Q-Connector

- Q-Dashboard

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

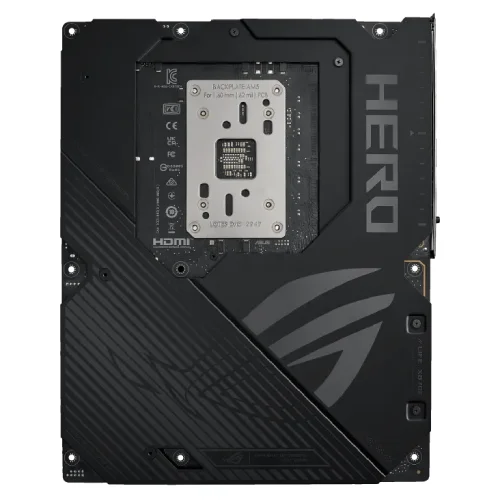

- Metal backplate

ASUS EZ DIY

- Backplate

- BIOS FlashBack™ button

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen2 header(s)

Front Panel USB 20Gbps with Quick Charge 4+ Support

- Support: up to 60W fast charging and USB Wattage Watcher*

- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

- Compatible with PD3.0 and PPS

* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.

Bundled Software

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

- Internet Security (1-year full version)

- Polymo Lighting II

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (1 year full version)

- Aura Creator

- Aura Sync

-Fan Xpert 4 (with AI Cooling II)

- GameFirst

- HWiNFO

- Power Saving

ASUS DriverHub

ASUS GlideX

USB Wattage Watcher

TurboV Core

WinRAR (40 Days Free Trial)

Adobe Creative Cloud (Free Trial)

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

FlexKey

Warranty Information

Manufacturing Warranty

3 Years Warranty
